A minimum cement content of 300kgm 3 and maximum water to cement ratio of 060 should be specified. ½ x circumference x wind pressure x pole height22.
Concrete Light Pole Base From Usa Precast Contractor Pricing Available
Total Weight Pole Weight Foundation Weight.
. When calculating wind load on a circular pole Im hoping someone can explain the difference between using the AASHTO Sign Structure Luminaire Guide Specs NESC. Street lighting schemes never brings the same appearance of daylight but provide sufficient light for people to see important objects required for traversing the road. Second Part of Pole h2 27 meter.
Foundation calculations are not available for fiberglass poles. Andrew PE PDH Online PDH Center 5272 Meadow Estates Drive Fairfax VA 22030-6658 Phone Fax. Pole Base Diameter outside diameter od øpole-B in.

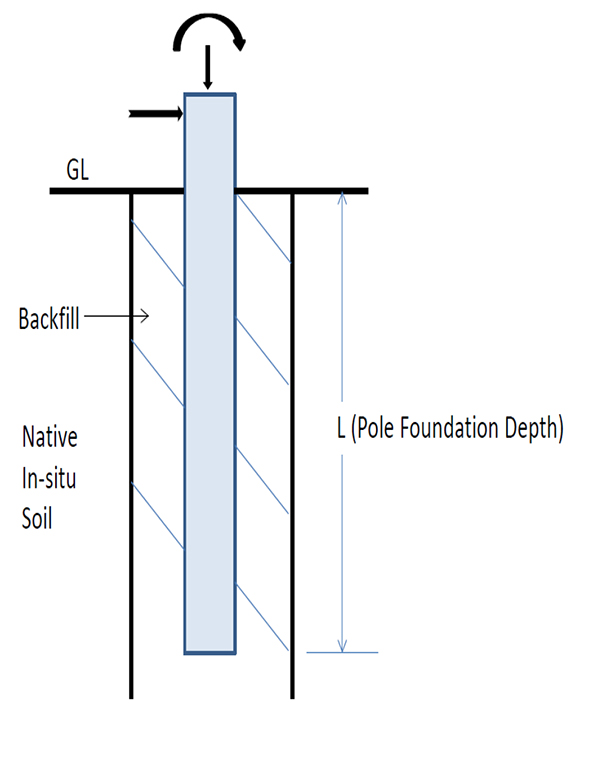

12000 mm 12 m Fig. The design of these foundations involves the calculation of ultimate moment capacity and deflectionsrotations of the pole foundation at ground line. The Attendee will learn how to determine the embedment depths and foundation pressures for many pole type structures including signs flagpoles light poles and pole framed buildings.
This restriction is due to the high slenderness ratio or Length to Diameter ratio and flexibility of the module. Civil Engineering Electrical Engineering Engineering Mechanical Engineering Structural Engineering See more. Arm Length Larm ft.
Arm End Diameter od øarm-E in. V w 180 Kmhr 1801000 3600 V w 50 msec Design wind speed V z. Make sure the foundation bolt is put together accurately with bolts vertical and fixed rigidly so it wont be displaced or misaligned during concreting.
The first Embedment of Poles Sheeting and Anchor Piles MA. Precast Muff Design Pre cast RCC Muff is fixed in the ground and the pole is mounted inside the Muff with PCC all around the pole inside the muff. The nominal service voltage to be used is 115 volts.
Page Item 1-3 LSS90-C w17 Fixtures Max -Wind Analysis 4-5 LSS90-C w17 Fixtures Max -Seismic Analysis 6-7 Precast Base by Cretex 8 Foundation Check 9 Fixture Aiming Angles and PAs and EPAs 10-29 Electrical Equipments anchorage calcs CODE REFERENCE. Wind-load calculations are available for fiberglass poles for all 50 States through our critical supplying partner. Wind pressure x Pole Height2 x Diameter ground.
To hold the base plate. The size of each conductor from the service enclosure to the luminaires shall be such that the voltage drop along each circuit will not exceed 7 for 2-wire systems and 6 for 3-wire systems of the nominal service voltage to the farthest luminaire. Maximum wind speed V w.
Requirement is to do calculation for existing foundation to check if safe for the pole light. In the NESC the wind moment is. Pole Foundation Design with Spreadsheet 2012 Instructor.
Arm Base Diameter od øarm-B in. S 3 Lateral Bearing Bottom S 1 033 S 3 A Area D Required Depth Top formulas Noncontrained Bottom formula Constrained. A more complete discussion of this foundations capabilities can be found under the.
Pole Top Diameter od øpole-T in. Download Save the software to use requires MS Excel Enter your search terms Submit search form. Street lighting design is the design of street lighting such that people can safely continue their travels on the road.
Diameter of First Part d1 140mm. This program will handle both horizontally as well as vertically applied loads. Base plate diameter.
K Kp GammaS W 1000 where Kp - Coef of Passive Soil Pressure GammaS - weight of soilpcf W - width of embedded postft. This definition clearly covers the application of. Light Structure Pole and Foundation Standard Calculation Index CONTENTS.
Top diameter of tapered circular pole is assumed as 250mm for purposes of calculating projected area. For high mast foundation proper footing design of cast in place foundation needed. Arm Wall Thickness tarm in.
Force Calculation of High Mast Light 2 Calculation. M1L is intended for general use in light duty self-supporting monopole structures. The Pole Fdn Czerniak worksheet assumes that the foundation is short rigid meeting the criteria that the foundation embedment length divided by the foundation diameter.
Mentary C142 further defines high-level lighting poles as structures normally in heights from 55 ft 17 m to 150 ft 46 m or more usually supporting four 4 to twelve 12 luminaires and used to illuminate large areas Specifica-tions 2009. This gives a faster and economical way to install the average sized poles upto a length of 6-12 m poles. In AASHTO the wind moment on a pole is.
Drucker Civil Engineering Dec 1934 Max passive pressure at base. 520 mm Thickness of base plate. First Part of Pole h1 27 meter.
Force Calculation of High Mast Light. Stabilizing Moment Total Weight X Foundation Length2 Stabilizing Moment 262075 X 072 92041 KgMeter. Depth to Arm Darm ft.
These pole foundations may be more efficient and easier to install than conventional spread footings in many applications. For guyed or multi-pole structures the M1L should only be used in poles up to 65 ft. Pole is later fastened to the base plate on the anchor bolts.
Also check that bolts project correctly above. A typical direct embedment pole foundation is shown in Fig. Street lighting plays an important.
Foundation bolts Foundation bolts are supplied with nuts washers a spacer plate and a fixing template in either wood smaller masts or steel. Shaft Depth Dshaft ft. Shaft Diameter øshaft in.
Total Weight 241 07071952500 262075 Kg. Pole Wall Thickness tpole in. 25 mm Height of pole.
Street light pole foundation design calculation pole foundation design xls light pole foundation requirements pole foundation design example light pole foundation design. The concrete used for unreinforced high mast lighting foundations should be a minimum of C2025. For reinforced concrete high mast light pole foundations a minimum C2835 grade should be specified.
Resulting wind forces on elements fixtures and fixings on the pole are approximate in the absence of specific data on effective projected areas EPAs from the pole and fixtures manufacturer. The depth of embedment is the main design parameter for these pole foundations. Block size range from 600mmx600mm x900 depth to 900 x900mm x1200 depth depending on pole htBut create yr design calculations satisfying stability against overturning with factor of safety of st least 15 under wind condition.
Foundation calculations are only valid for anchor-based steel and aluminum poles ordered through United Lighting Standards. Bridge Mount Lighting Pole Foundation The VDOT Standard Bridge Conduit System includes a light pole foundation suitable to support a 40 cobrahead lighting pole with a 6 luminaire arm. Pole Length Lpole ft.
